Poynting K-GRID-003-06

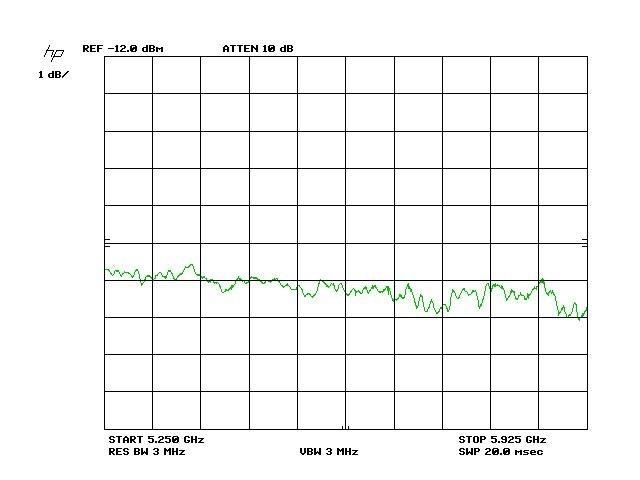

Frequency Response

Radiation Pattern

Output of run

Measuring ...
Detected measurement resolution of 0.556414219474 degrees.
Finding peak magnitude and angle ...
Normalizing magnitude by adding 18.0dB ...
-3dB beamwidth is 5.56312546134 degrees.
Centering on beamwidth by rotating readings -180.430312827 degrees ...
-120 degree gain = -44.6213818567dB, +120 degree gain = -40.9114995351dB.
Writing results to pattern.R
Done!

Assembly Instructions

Horizontal Polarity Construction
